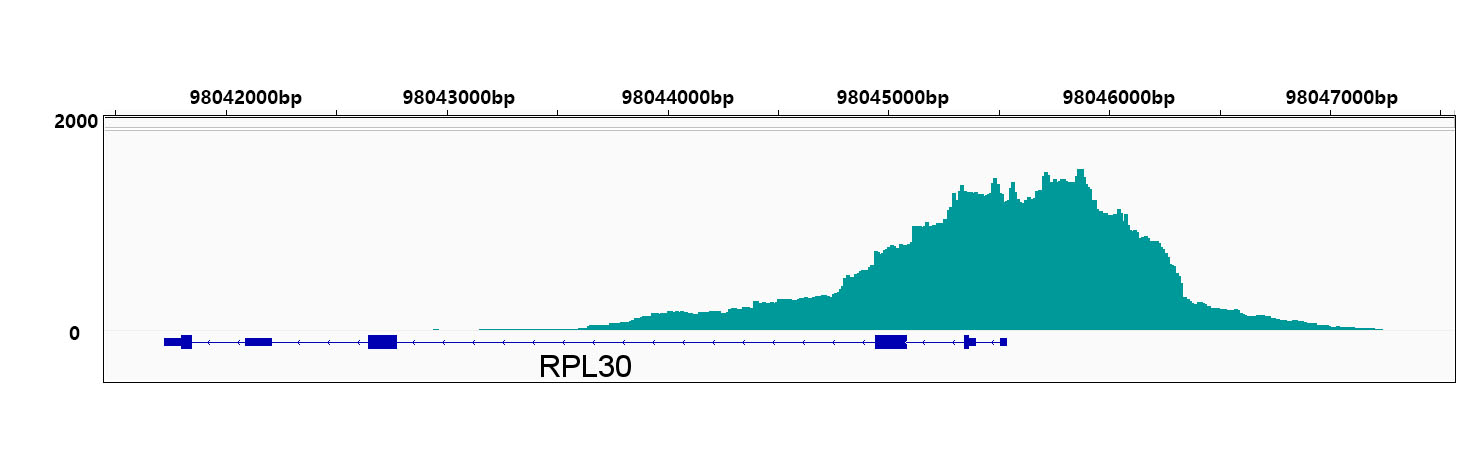

CUT&Tag was performed using the CUT&Tag Assay Kit (pAG-Tn5) for Illumina (RK20265) from 10⁵ K-562 cells with 1 μg of TriMethyl-Histone H3-K4 Rabbit mAb (A22146), followed by incubation with Goat Anti-Rabbit IgG(H+L)(AS070). The CUT&Tag results denote the enrichment pattern of TriMethyl-Histone H3-K4 around RPL30 gene.

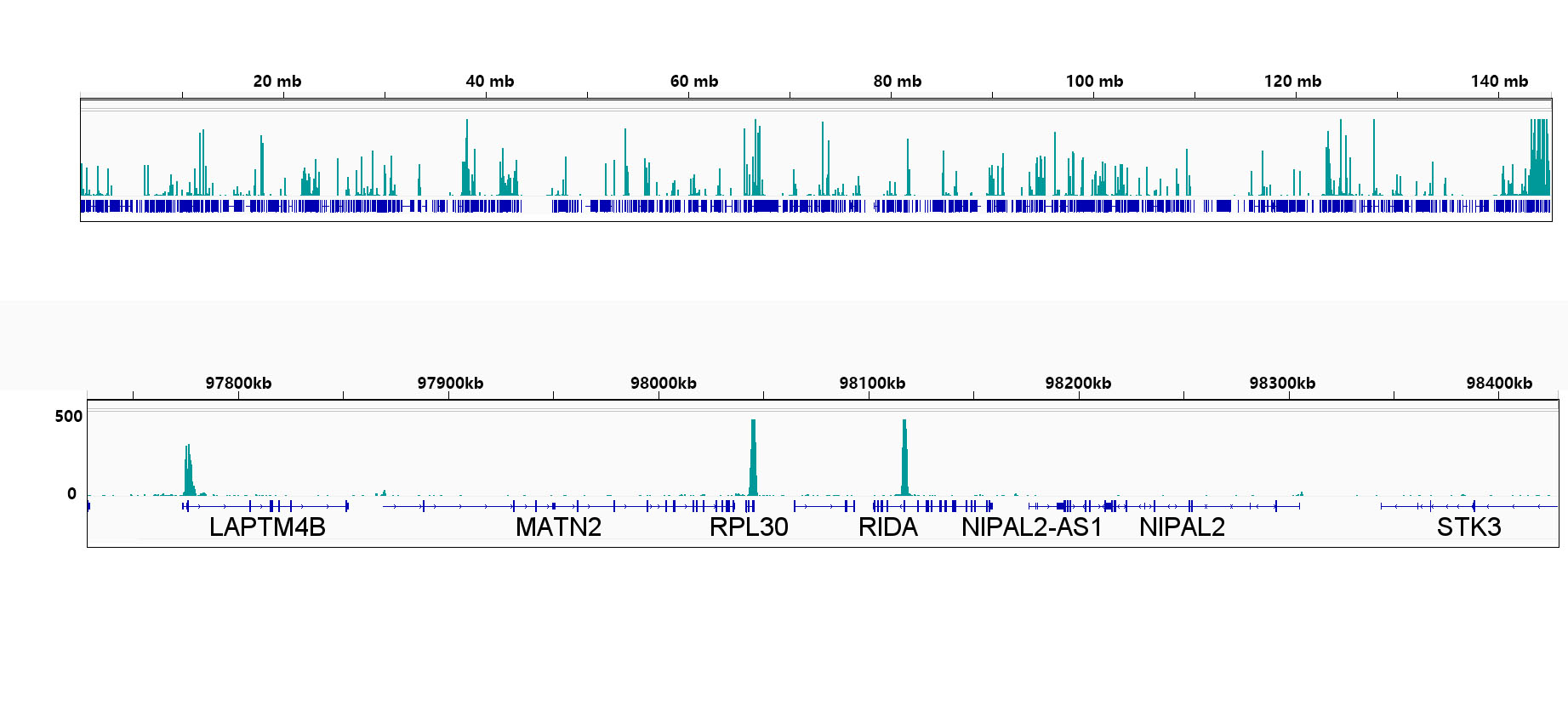

CUT&Tag was performed using the CUT&Tag Assay Kit (pAG-Tn5) for Illumina (RK20265) from 10⁵ K-562 cells with 1 μg of TriMethyl-Histone H3-K4 Rabbit mAb (A22146), followed by incubation with Goat Anti-Rabbit IgG (H+L)(AS070). The CUT&Tag results denote the enrichment pattern of TriMethyl-Histone H3-K4 across chromosome 8 (upper panel) and the genomic region encompassing RPL30, a representative gene enriched in TriMethyl-Histone H3-K4 (lower panel).

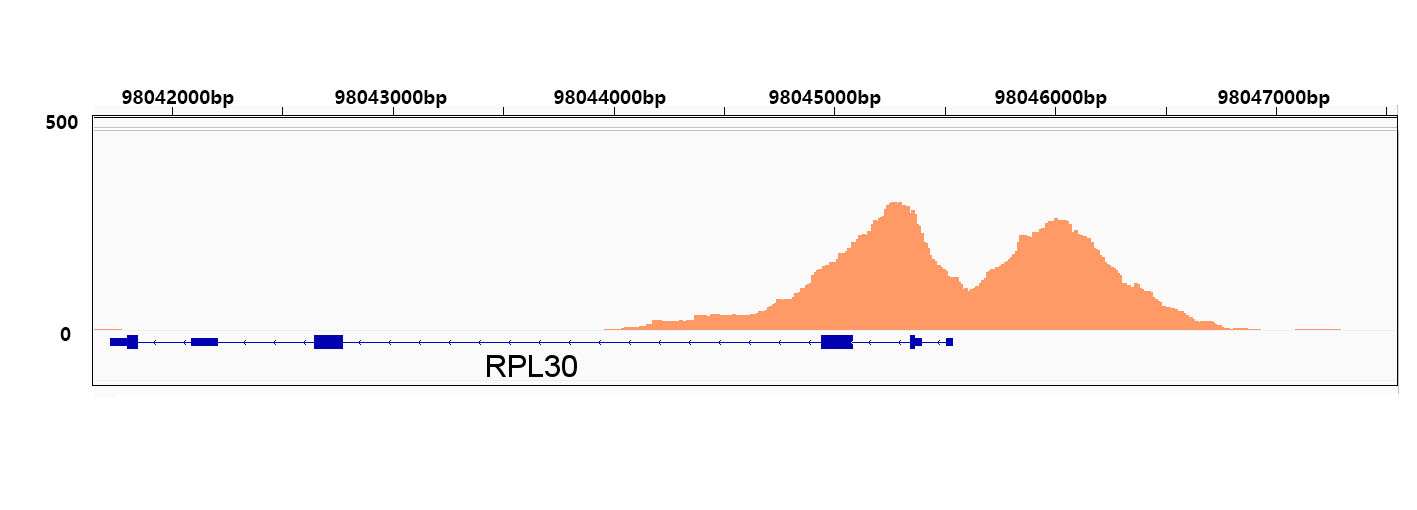

Chromatin immunoprecipitation was performed with 10 μg of cross-linked chromatin from 293T using 5 μg of TriMethyl-Histone H3-K4 Rabbit mAb (A22146). DNA libraries were prepared using Scale ssDNA-seq Lib Prep Kit for Illumina V2 (RK20228). The ChIP sequencing results indicate the enrichment pattern of TriMethyl-Histone H3-K4 in the representative genomic region surrounding RPL30 gene.

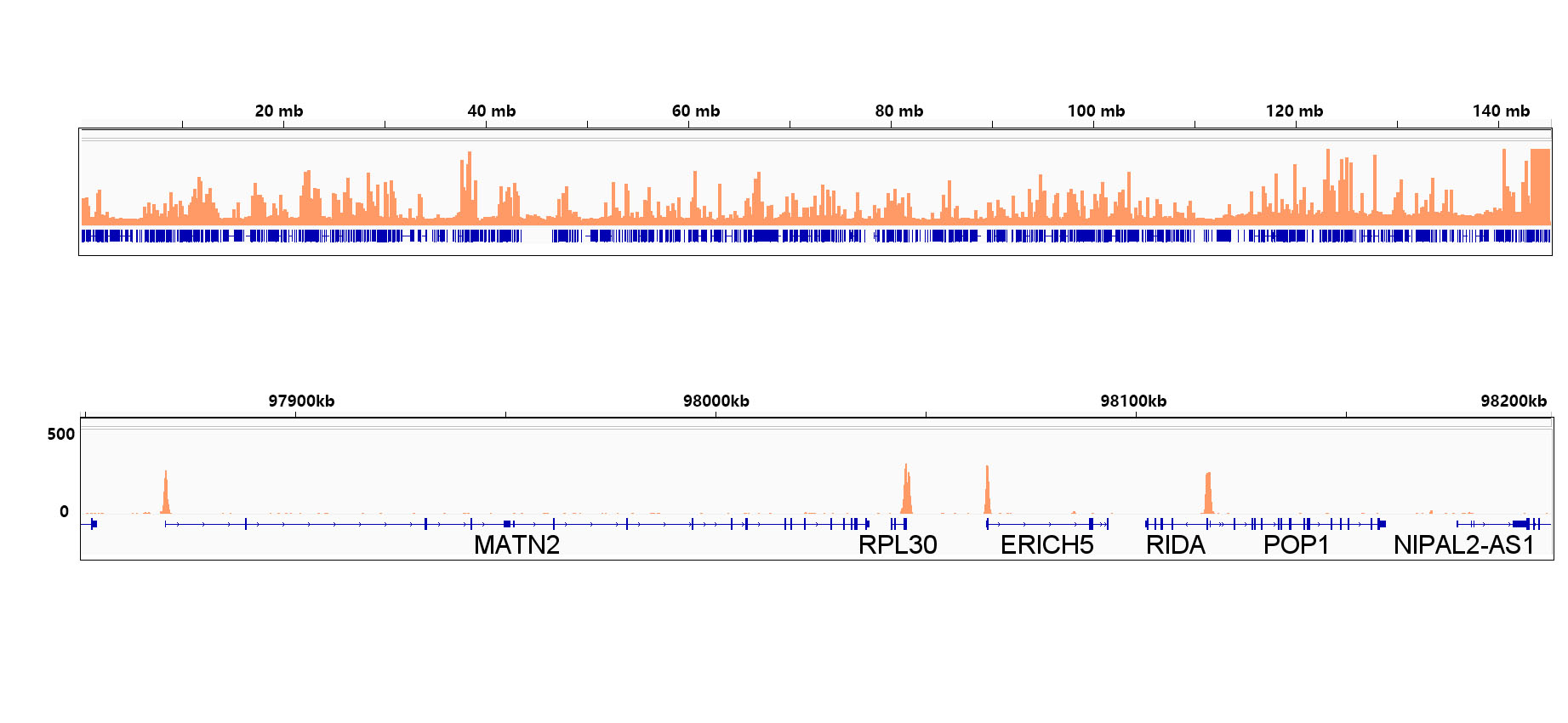

Chromatin immunoprecipitation was performed with 10 μg of cross-linked chromatin from 293T using 5 μg of TriMethyl-Histone H3-K4 Rabbit mAb (A22146). DNA libraries were prepared using Scale ssDNA-seq Lib Prep Kit for Illumina V2 (RK20228). The ChIP sequencing results indicate the enrichment pattern of TriMethyl-Histone H3-K4 across chromosome 8 (upper panel) and the genomic region encompassing RPL30, a representative gene enriched in TriMethyl-Histone H3-K4 (lower panel).

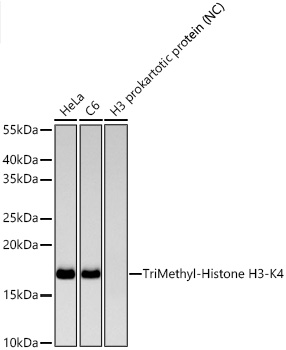

Western blot analysis of various lysates using TriMethyl-Histone H3-K4 Rabbit mAb (A22146)at 1:5000 dilution incubated overnight at 4℃.Secondary antibody: HRP-conjugated Goat anti-Rabbit IgG (H+L) (AS014) at 1:10000 dilution.Lysates/proteins: 25 μg per lane.Blocking buffer: 3% nonfat dry milk in TBST.Detection: ECL Basic Kit (RM00020).Negative control (NC): H3 prokaryotic proteinExposure time: 45s.

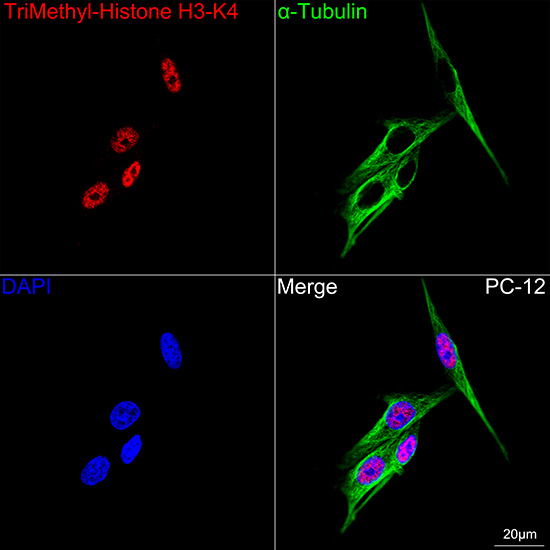

Confocal imaging of PC-12 cells using TriMethyl-Histone H3-K4 Rabbit mAb (A22146, dilution 1:200) followed by a further incubation with Cy3 Goat Anti-Rabbit IgG (H+L) (AS007, dilution 1:500) (Red). The cells were counterstained with α-Tubulin Mouse mAb (AC012, dilution 1:400) followed by incubation with ABflo® 488-conjugated Goat Anti-Mouse IgG (H+L) Ab (AS076, dilution 1:500) (Green). DAPI was used for nuclear staining (Blue). Objective: 100x.
Confocal imaging of NIH/3T3 cells using TriMethyl-Histone H3-K4 Rabbit mAb (A22146, dilution 1:200) followed by a further incubation with Cy3 Goat Anti-Rabbit IgG (H+L) (AS007, dilution 1:500) (Red). The cells were counterstained with α-Tubulin Mouse mAb (AC012, dilution 1:400) followed by incubation with ABflo® 488-conjugated Goat Anti-Mouse IgG (H+L) Ab (AS076, dilution 1:500) (Green). DAPI was used for nuclear staining (Blue). Objective: 100x.

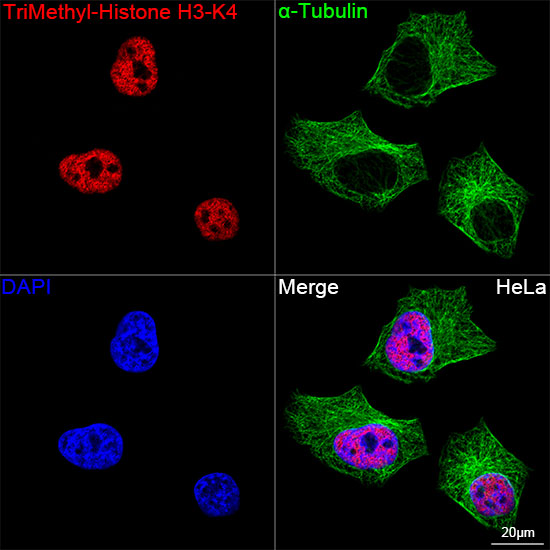

Confocal imaging of HeLa cells using TriMethyl-Histone H3-K4 Rabbit mAb (A22146, dilution 1:200) followed by a further incubation with Cy3 Goat Anti-Rabbit IgG (H+L) (AS007, dilution 1:500) (Red). The cells were counterstained with α-Tubulin Mouse mAb (AC012, dilution 1:400) followed by incubation with ABflo® 488-conjugated Goat Anti-Mouse IgG (H+L) Ab (AS076, dilution 1:500) (Green). DAPI was used for nuclear staining (Blue). Objective: 100x.

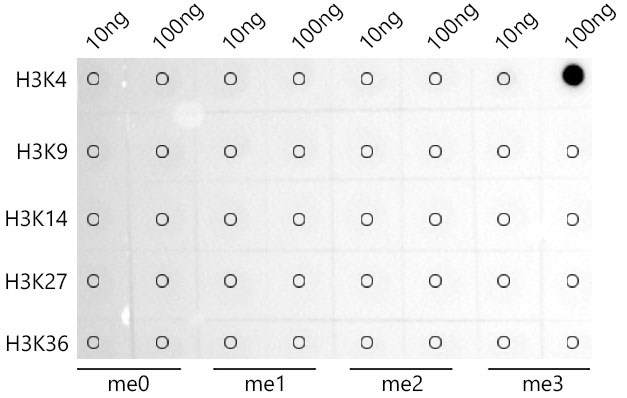

Dot-blot analysis of all sorts of peptides using TriMethyl-Histone H3-K4 antibody (A22146) at 1:50000 dilution.

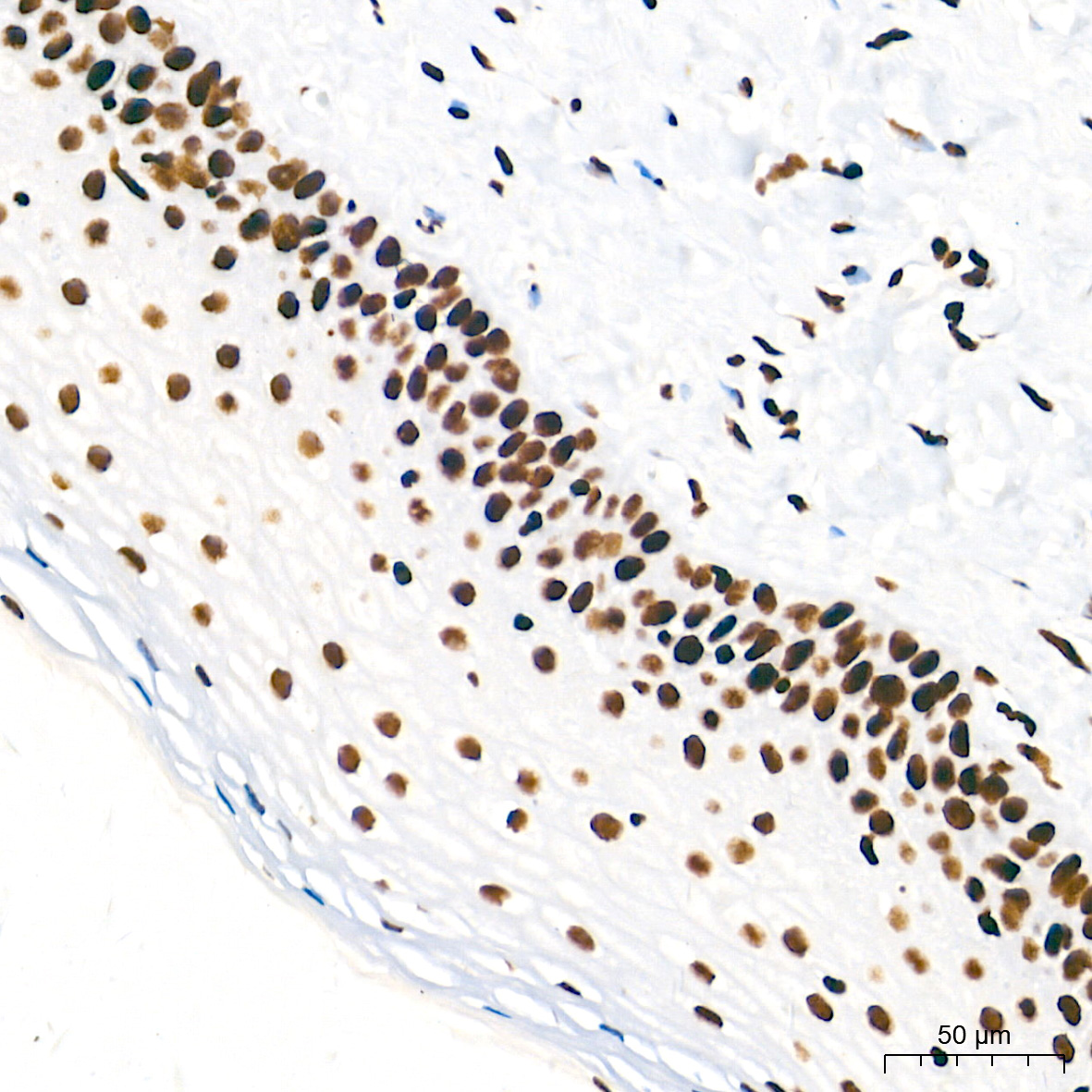

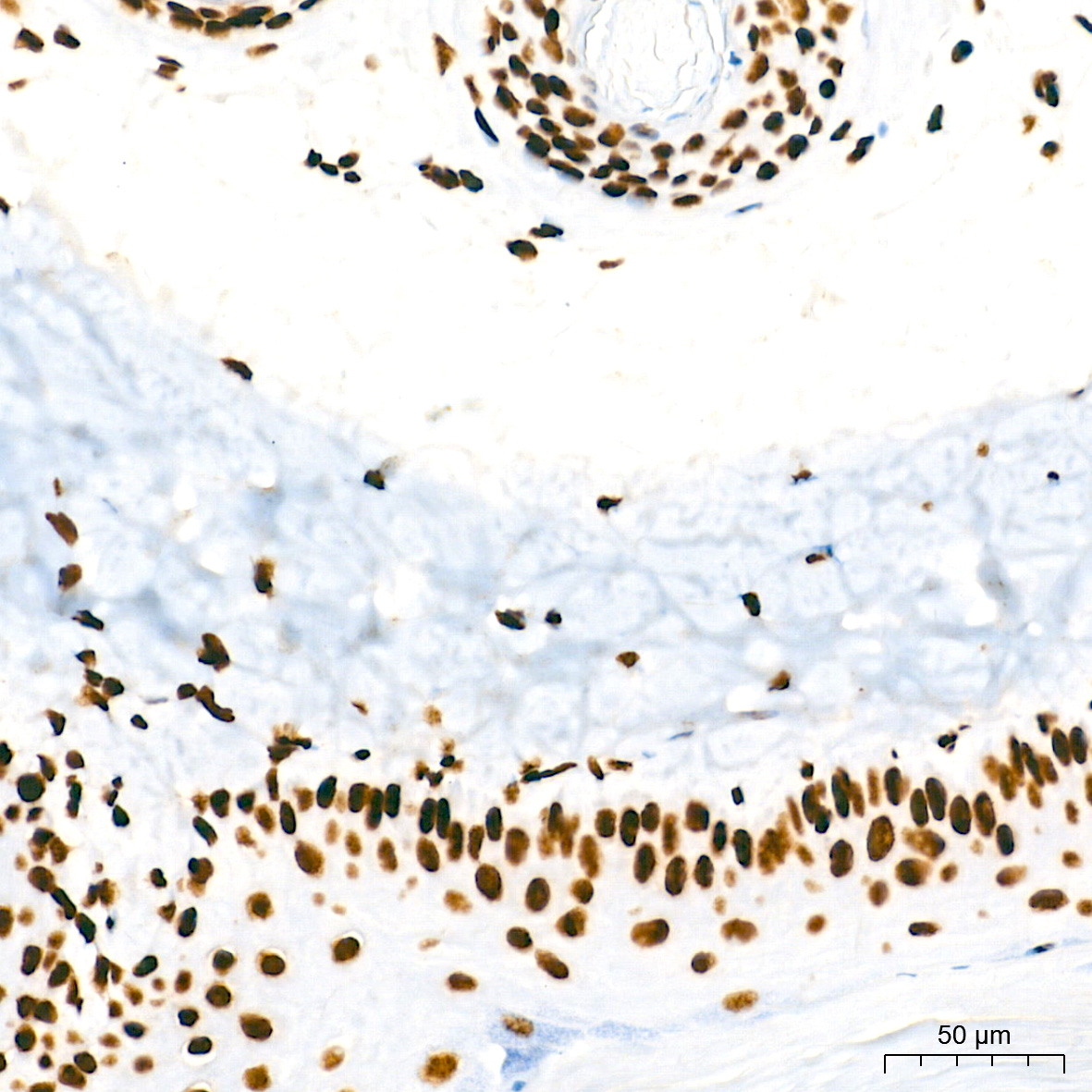

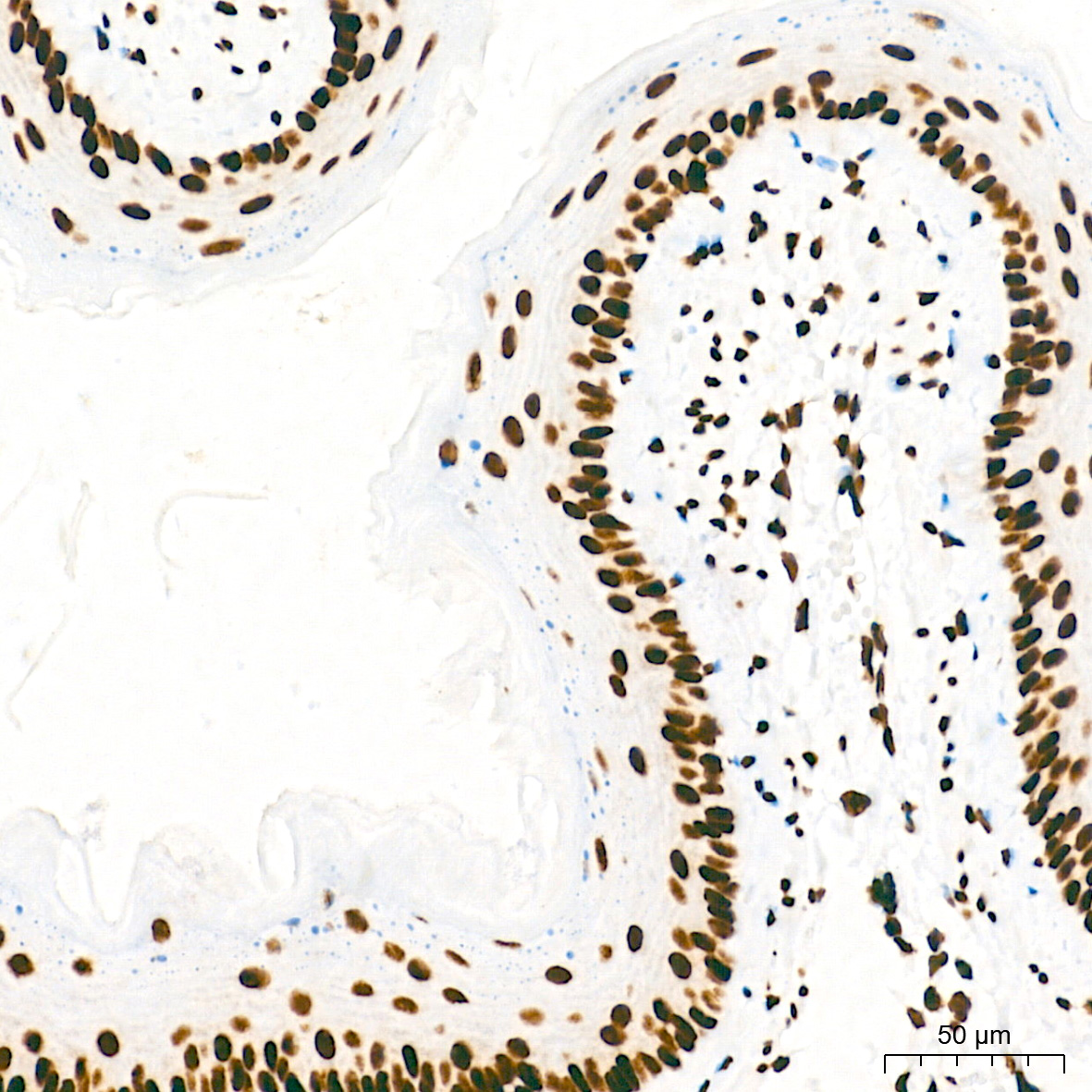

Immunohistochemistry analysis of paraffin-embedded Human liver cancer using TriMethyl-Histone H3-K4 Rabbit mAb (A22146) at dilution of 1:200 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.
Immunohistochemistry analysis of paraffin-embedded Human spleen using TriMethyl-Histone H3-K4 Rabbit mAb (A22146) at dilution of 1:200 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.
Immunohistochemistry analysis of paraffin-embedded Mouse brain using TriMethyl-Histone H3-K4 Rabbit mAb (A22146) at dilution of 1:200 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.

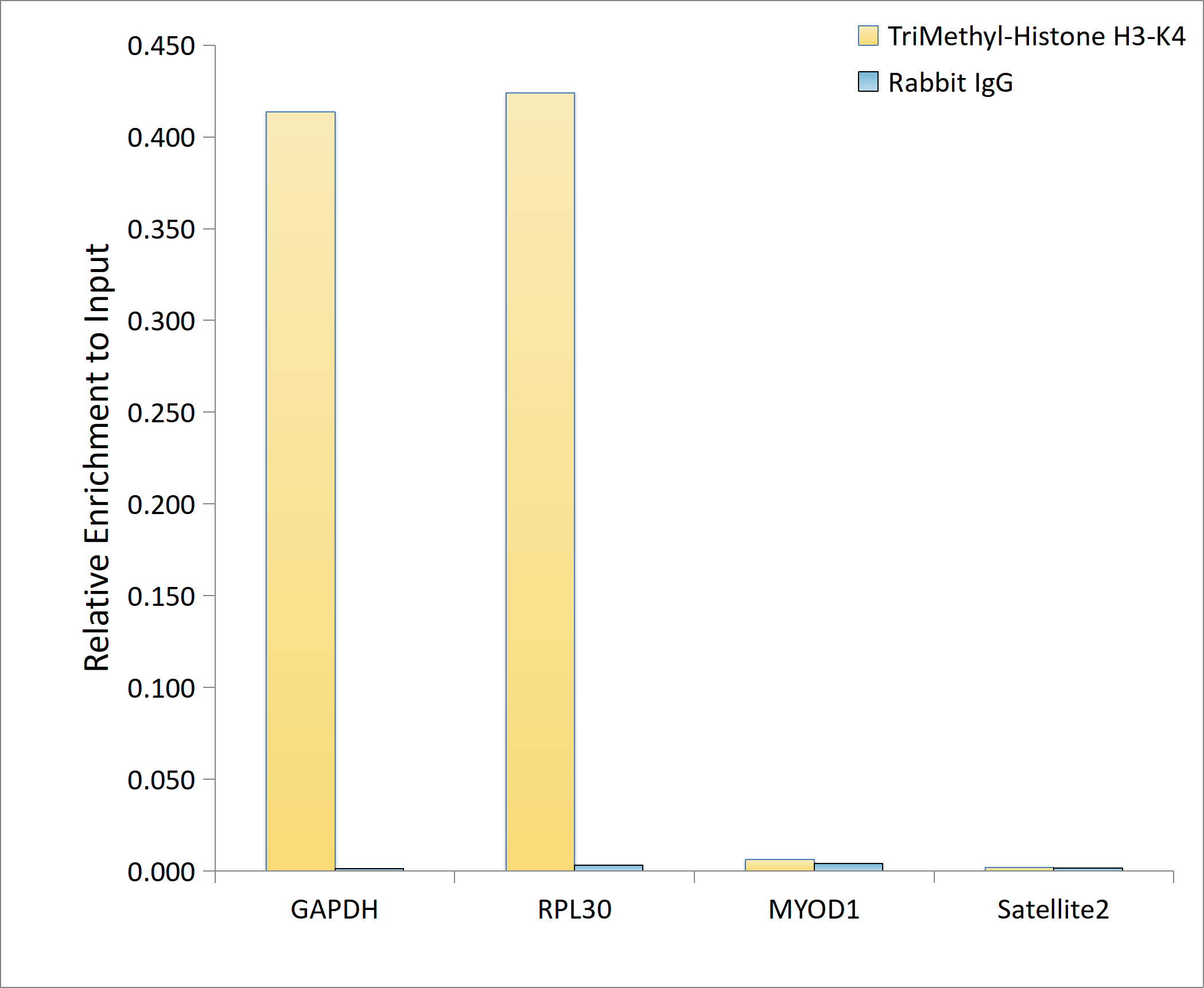

Chromatin immunoprecipitation analysis of extracts of HeLa cells, using TriMethyl-Histone H3-K4 antibody (A22146) and rabbit IgG.The amount of immunoprecipitated DNA was checked by quantitative PCR. Histogram was constructed by the ratios of the immunoprecipitated DNA to the input.
